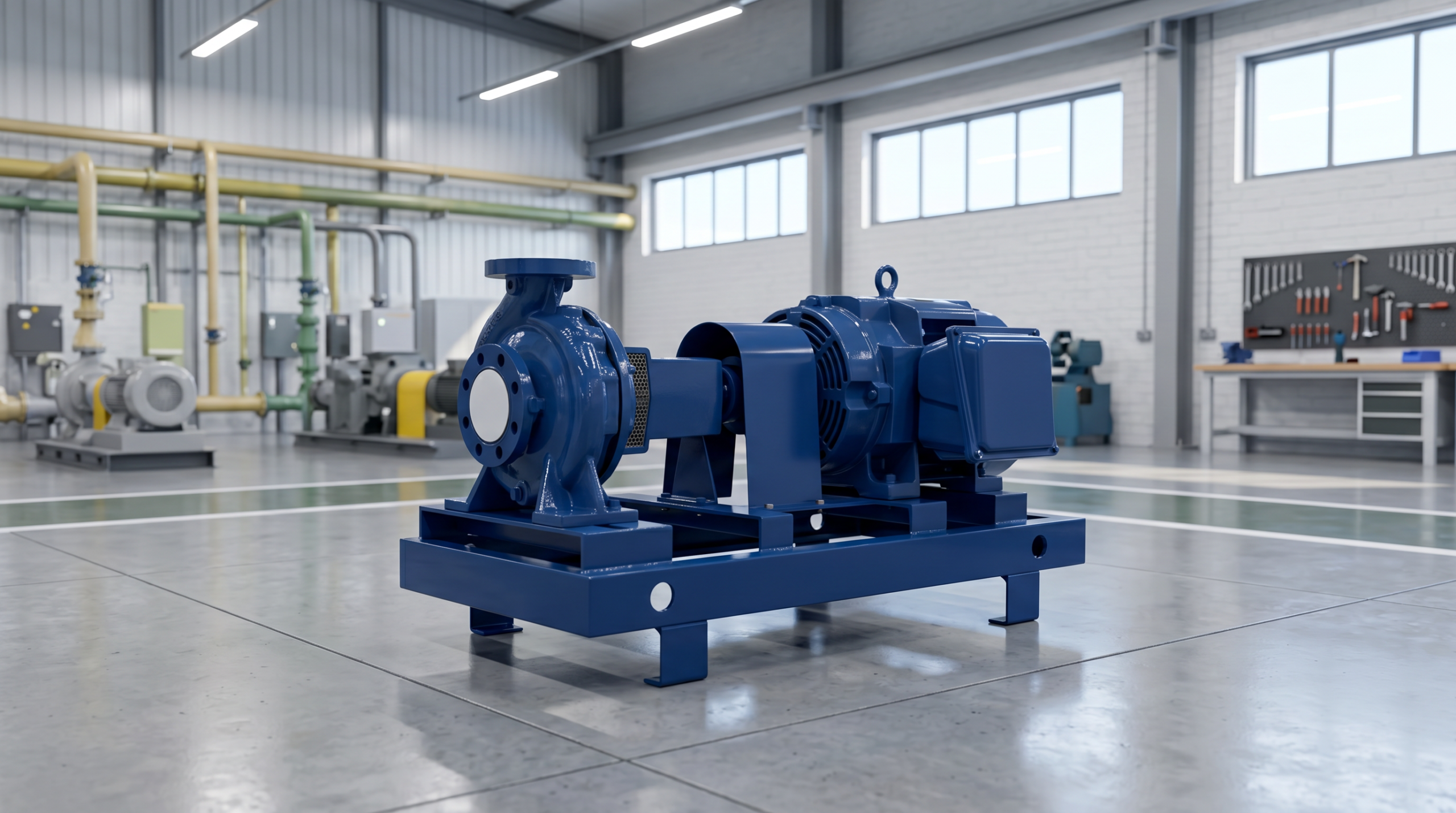

Single Stage Centrifugal Pumps

You are here:

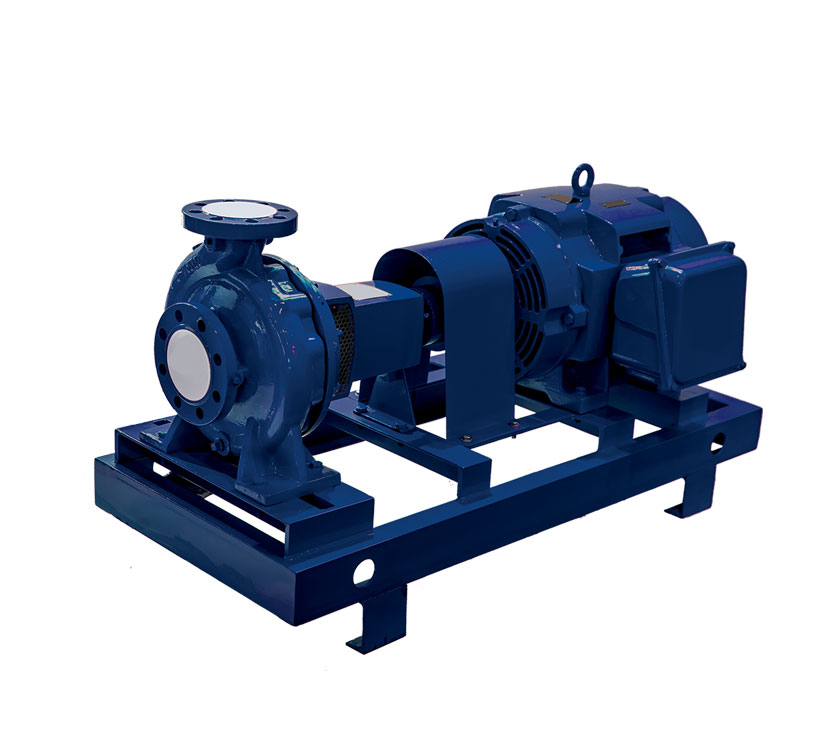

Horizontal-shaft, volute-casing, end-suction pump with closed impeller
IE3 energy-efficient motor
B3 mounting configuration, flexible coupling connection
Standard: Mechanical seal (Optional: mechanical seal with stainless steel shaft)
CE Declaration of Conformity
Installation and operating manual

PUMP TYPE	DNS	DND	A (MM)	F (MM)	H1 (MM)	H2 (MM)	B (MM)	M1 (MM)	M2 (MM)	N1 (MM)	N2 (MM)	S1	W (MM)	D (MM)	L (MM)	X (MM)	WEIGHT (KG)
ASTP 32-160	50	32	80	360	132	160	50	100	70	240	190	M12	260	24	50	65	38
ASTP 32-200	50	32	80	360	160	180	50	100	70	240	190	M12	260	24	50	65	41
ASTP 32-250	50	32	100	360	180	225	65	125	95	320	250	M12	260	24	50	65	46
ASTP 40-160	65	40	80	360	132	160	50	70	70	240	190	M12	260	24	50	75	39
ASTP 40-200	65	40	100	360	160	180	50	70	70	265	212	M12	260	24	50	75	45
ASTP 40-250	65	40	100	360	180	225	65	96	95	320	250	M12	260	24	80	75	54
ASTP 50-160	65	50	100	360	160	180	50	70	70	265	212	M12	260	24	50	80	42
ASTP 50-200	65	50	100	360	160	200	65	70	70	265	212	M12	260	24	50	85	47
ASTP 50-250	65	50	100	360	180	225	65	95	95	320	250	M12	260	24	80	85	55
ASTP 50-315	80	50	125	470	225	280	65	95	120	360	280	M12	330	32	80	100	103
ASTP 65-160	80	65	100	360	160	200	65	95	95	320	250	M12	260	24	50	100	44
ASTP 65-200	80	65	100	360	180	225	65	95	95	320	250	M12	260	24	50	100	48
ASTP 65-250	80	65	100	470	200	250	80	120	120	360	280	M16	340	32	80	100	78
ASTP 65-315	80	65	125	470	225	280	80	120	120	400	315	M16	340	32	80	110	88
ASTP 65-400	100	65	125	470	250	355	80	120	120	400	315	M16	340	32	80	-	126

PUMP TYPE	DNS	DND	A (MM)	F (MM)	H1 (MM)	H2 (MM)	B (MM)	M1 (MM)	M2 (MM)	N1 (MM)	N2 (MM)	S1	W (MM)	D (MM)	L (MM)	X (MM)	WEIGHT (KG)
ASTP 80-160	100	80	125	360	180	225	65	95	95	320	250	M12	260	24	50	110	52
ASTP 80-200	100	80	125	470	180	250	65	95	95	345	280	M12	340	32	80	110	77
ASTP 80-250	100	80	125	470	200	-	80	120	120	400	-	M16	340	32	80	115	94
ASTP 80-315	100	80	125	470	250	315	80	120	120	400	315	M16	340	32	80	120	108
ASTP 80-400	100	80	125	540	280	355	100	150	150	500	400	M20	370	42	110	120	163
ASTP 100-160	100	-	125	360	200	-	80	120	120	360	280	M16	260	24	50	120	75
ASTP 100-200	125	100	125	470	200	280	80	160	120	360	280	M16	340	32	80	120	84
ASTP 100-250	125	100	140	470	225	280	80	160	120	400	315	M16	340	32	80	130	96
ASTP 100-315	125	100	140	470	250	315	75	160	120	400	315	M16	340	32	80	130	112
ASTP 100-400	125	100	140	530	280	315	100	200	150	500	400	M20	370	42	110	130	170
ASTP 125-200	150	125	140	470	-	315	80	160	120	400	315	M16	340	32	80	130	107
ASTP 125-250	150	125	140	470	250	355	80	200	150	400	315	M16	340	32	80	140	108
ASTP 125-315	150	125	140	530	280	355	100	200	150	500	400	M20	370	42	110	140	168
ASTP 125-400	150	125	140	470	315	-	100	200	150	500	400	M20	370	42	110	140	192
